Get Flow Curves Directly on the Instrument

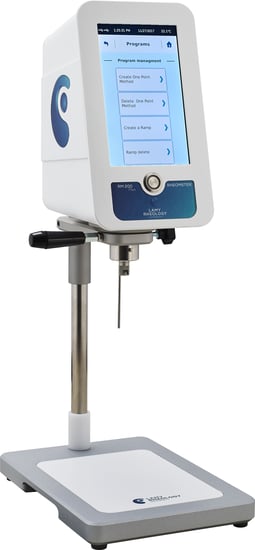

The RM 200 Plus Rheometer provides full rheology testing (flow curves, yield value, etc.) directly on the instrument. It has an extremely wide speed and torque range, and is compatible with all spindles and temperature control accessories.

You can connect the instrument to a computer and control the rheometer with the optional Rheomatic-P software. This software will also let you save test data directly on your computer.

Don't want the software? The RM 200 Plus lets you save test results and multi-step test parameters directly on the instrument. View your results on the 7" touchscreen, and export data to a computer via USB.

How Can You Configure It?

There are many options to choose from. Here are a few suggestions.

Food Industry Configurations

  • Liquid to cream products: RM 200 Plus + MS-DIN spindle set.
  • Creams, soft gels, and pastes: RM 200 Plus + CP1 Plus Temperature Control + MS-CP spindle.
  • Chocolate: RM 200 Plus + EVA 100 Temperature Control + MS-C spindle set OR RM 200 Plus + EVA DIN Temperature Control + MS-C spindle set + Rheomatic-P Software (for IOCCC).

Cosmetics Industry and Pharmaceutical Industry Configurations

  • Mascara and other heterogenous makeup: RM 200 Plus + MS-R 1-5 spindle set + EVA MS-R Temperature Control.
  • Shampoos and conditioners: RM 200 Plus + MK-R 2-4 spindle set. (Use this set to get UD values.)
  • Liquids to creams: RM 200 Plus + MS-DIN spindle set + EVA DIN Temperature Control (optional) + Rheomatic-P software (optional)

Paints, Coatings and Inks Configurations

  • Liquid to highly concentrated coatings (resins, inks): RM 200 Plus + MS-DIN spindle set.
  • Paint, varnish, and glue: RM 200 Plus + MS-DIN spindle set.

Petroleum and Chemical Industry Configurations

  • Liquids, emulsions, and suspensions: RM 200 Plus + MS-DIN spindle set.
  • Melts and highly viscous samples: RM 200 CP 4000 Plus H + MS-CP spindle.

Construction Industry

  • Mastic and highly viscous samples: RM 200 CP 4000 Plus + MS-CP spindle.
  • Liquids, emulsions, and suspensions: RM 200 Plus + MS-DIN spindle set.

Product Specifications

  • Type of instrument: Rotating springless rheometer with imposed speeds and 7’’ Touch screen
  • Rotation speeds: Unlimited number of speeds between 0.3 and 1500 rpm
  • Torque range: From 0.05 to 30 mNm
  • Temperature: The RM 200 PLUS has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C
  • Accuracy: +/- 1 % of the full scale
  • Repeatability: +/- 0,2%
  • Display: Viscosity – Speed – Torque – Time –Temperature - Choice of viscosity units: cP/Poises or mPa.s / Pa.s – Shear rate
  • Security and confidentiality: An «operator» function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.
  • Language: French/English/Russian/Spanish
  • Compatible measuring system: MS DIN, MS ASTM, MS BV, MS VANE, MS R, MS HT, MS ULV, MS SV, MS CP
  • Compatible temperature control: EVA DIN, EVA MS-R, EVA LR-BV, RT1, RT3, CP1
  • Supply voltage: 90-240 VAC 50/60 Hz
  • Analog output: 4 - 20 mA
  • PC connections: RS232 Port and USB
  • Printer connection: USB Host Port - Compatible PCL/5
  • Options: Software (PN 311002)
  • Dimensions and weight: Head: L180 x W135 x H250 mm Hardened steel stand: L280 x W200 x H30 mm Stainless steel rod: Length 500 mm Weight: 6.7 kg
