Replacing the EFL 2000 and D300 Shakers
· A new electromagnetic drive.
· Adjustable amplitude.
· Floor or table mounted.
· Suitable for wet or dry sieving.· Digital controls for easy and reliable operation via external interface.

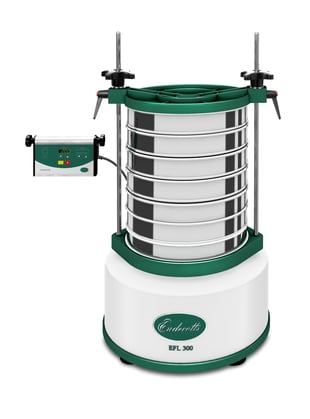

Heavier and larger samples can be sieved with the new EFL 300. It is extremely versatile. Amplitude setting is now standard. The heavy electric motor is replaced by the electromagnetic system found in all modem sieve shakers. Its lighter form means that it can be either floor standing or even bench mounted, making it suitable for the both laboratory and industrial environments. Sieving parameters are set by the remote control unit. Its functions are logical and very simple to operate.
Range: 20 μm to 40 mm
Drive/sieving motion: electromagnetic 30
Max. batch/feed capacity: 6 kg
Max. number of sieves: 6 full height/ 12 half height (300 mm sieves)
Amplitude( * ): 0 - 2 mm! /digital setting in 10 steps
Speed: 3,000 min-1 at 50 Hz
Time display: digital, 0: 10-99: 55 min (external unit)
Suitable for dry sieving: yes
Suitable for wet sieving: yes
Sieve diameter: 100 / 150 / 200 / 250 / 300 / 315 mm; 3" / 8" / 12"
Max. height of sieve stack: 450 mm
Clamping devices quick-release clamping system (included)
Model: floor or benchtop
Protection code: IP 54
Electrical supply: different voltages available
Power connection: 1- Phase
D x H: 427 mm x 240 mm (without clamping unit)
Net weight: ~ 45 kg
( * ) depending on load
When Do You Select The EFL Sieve Shaker?
Get the EFL when you need an effective motion that gets particles to spend the maximum time seeking openings rather than suspended in the air, and keeps sieve openings clear and free of blinding. Additionally, it's good for when you need this action on large size samples. Also consider the EFL if you need to do wet sieving.
