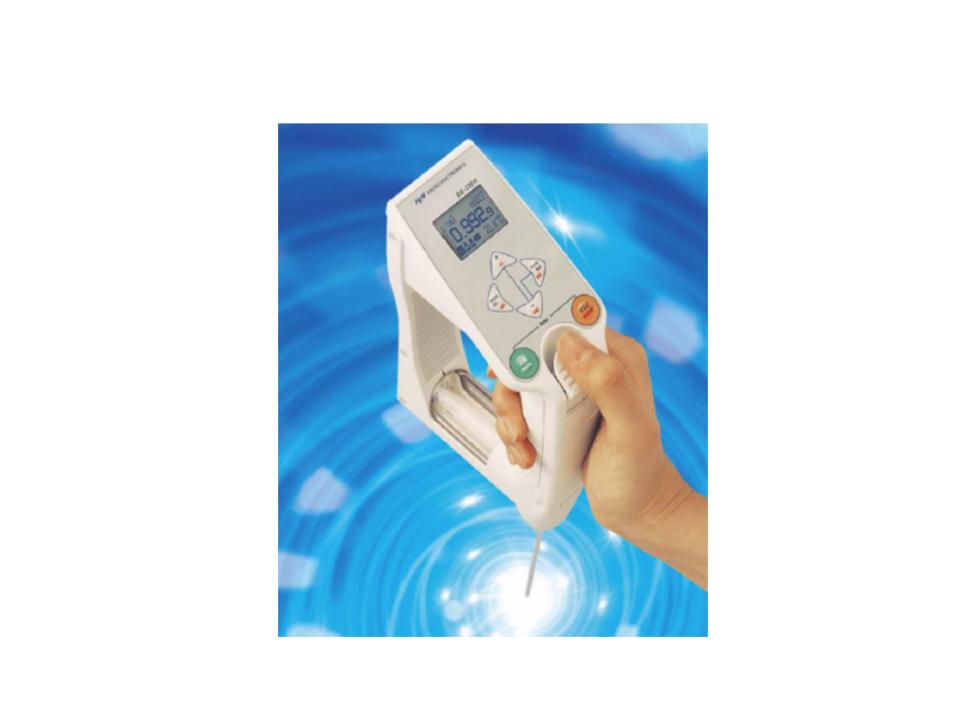

Portable Density Meter
The DA-130N portable density meter offers a lot in a small, ergonomically-designed instrument. It can satisfy many applications, including Brix testing, and meeting the ASTM D7777 oscillation method standard.
Test the density of beverages, petroleum products, brines, pickling, oils and fats, and concentrations of etching, flux or plating solutions.
This instrument is capable of testing the density of samples with a viscosity of up to 2,000 cP. With a backlit display and long battery life, you can test anywhere, anytime.
Model | DA-130N Portable Density/Specific Gravity Meter |
Measuring method | Resonant frequency oscillation |
What to measure | Liquid samples |
Measuring range | 0.0000 to 2.0000g/cm3 |
Accuracy | ±0.001g/cm3 |
Resolution | 0.0001g/cm3 |
Temperature range | 0 to 40.0° C (32 to 104° F) |
Backlit display | Density, temp-compensated density, SG, temp-compensated SG, Brix%, Alcohol wt%, Alcohol vol%, %H2SO4, API degree, Baume degree, Plato degree, Proof degree, Temperature in°C/°F, Sample No., Stability, Data storage, Data output, Data deletion, Battery level, etc. |
Temperature
compensation
|
Up to 10 coefficients for temperature compensation can be entered. |
Materials in contact
with sample
|
PTEE, borosilicate glass, polypropylene (PP), Fluoro Rubber
*May not be resistant to every sample and cleaning solution.
|
Auto calibration
|
Density of water at each temperature, required for calibration of measuring cell, is pre-installed. |
Sampling by | Syringe-type hand pump |
Data storage | Up to 1,100 samples |
Power supply | Alkaline battery LR03 (AAA) 1.5V 2pcs |
External output | Infrared communications port (conforming to IrDA Ver. 1.2)
Conversion to RS-232C output (Optional parts required)
|
Battery life | Approx. 90 hours |
Weight | Approx. 360g (0.794 lbs) |
