Cone-Plate

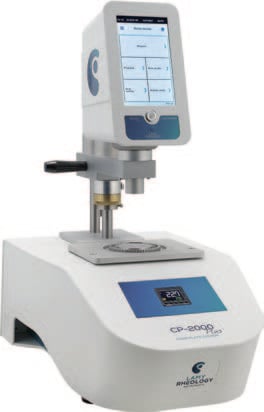

The RM 100 CP 2000 Plus Viscometer is a flexible cone-plate viscometer that offers an integrated temperature probe, temperature control, and programming and saving one-step tests directly on the instrument. It has a wide speed and torque range, and your choice of one of two options for easy spindle connection.

You can connect the instrument to a computer and control the viscometer with the optional Rheotex software. This software will let you save test data directly on your computer, and give you the option to create flow curves using multistep tests.

Don't want the software? You can always view your results on the 7" touchscreen, and export data to a computer via USB.

How Can You Configure It?

There are many options to choose from. Here are a few suggestions.

Food Industry Configurations

  • Creams, soft gels, and pastes: RM 100 CP 2000 Plus Cone-Plate Viscometer + MK-CP 4020 spindle. Add Rheotex software to get viscosity curve, flow curve, yield stress, and thixotropy data.

Paints, Coatings and Inks Configurations

  • Liquid to highly concentrated coatings with ICI Method (ASTM 4287): RM 100 Plus CP 2000 Cone-Plate Viscometer + MK-CP 2445 spindle.

Petroleum and Chemistry Industry Configurations

  • Melt, grease, and asphalt: RM100 PLUS CP2000H + CP 4020 spindle + optional Rheotex Software.

Product Specifications

  • Type of instrument: Cone-plate rotating springless viscometer with 7’’ Touch screen
  • Rotation speeds: Unlimited number of speeds between 0.3 and 1500 rpm
  • Torque range: 0.05 to 30 mNm
  • Temperature: The temperature range of the use is from – 20 °C to + 300 °C according to models
  • Accuracy: +/- 1% of the full scale
  • Repeatability: +/- 0.2%
  • Display: Viscosity – Speed – Torque – Time – Temperature -- Choice of viscosity units: cP/Poises or mPa.s/Pa.s – Shear rate
  • Norms: ASTM : D4287 ; BS 3900 ; DIN 3219 ; 52007-1 ; 53019-1 ; 54453 ; ISO 2884; 3219 ; 10364-12.
  • Language: French/English/Russian/Spanish
  • Compatible measuring system: MS CP
  • Supply voltage: 90-240 VAC 50/60 Hz
  • Analog output: 4 - 20 mA
  • PC connections: RS232 Port and USB
  • Printer connection: USB Host Port - Compatible PCL/5
  • Options: Rheotex Software (PN N311000 + license PN N311202)
  • Dimensions and weight: Head: L180 x W135 x H250 mm; Stand for CP 2000: D610 x W340 x H650 mm; Weight: 22 kg
