Cone-Plate

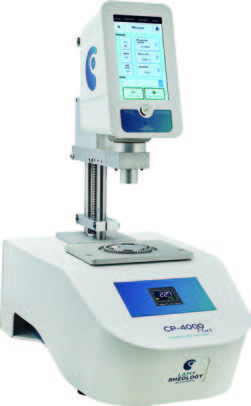

The RM 200 CP 4000 Plus Rheometer is a flexible cone-plate rheometer that offers an integrated temperature probe, temperature control, and programming and saving multi-step tests and flow curves directly on the instrument.

It offers automatic raising and lowering of the instrument so that you can lower the spindle precisely to the same point every time. Choose between one of two options for easy spindle connection.

You control the rheometer via computer with the optional Rheotex software. This software will also let you save test data directly on your computer.

Don't want the software? You can always view your results on the 7" touchscreen, and export data to a computer via USB.

How Can You Configure It?

There are many options to choose from. Here are a few suggestions.

Food Industry

  • Cream, soft gel, paste: RM 200 CP 4000 Plus Rheometer + MK-CP 4020 spindle

Cosmetics Industry

  • Creams to soft solids: RM 200 CP 4000 Plus Rheometer + MK-CP spindle + Rheotex software.

Paints, Coatings and Inks Configurations

  • Liquid to highly concentrated coatings with ICI Method (ASTM 4287): RM 200 Plus CP 4000 Cone-Plate Viscometer + MK-CP 2445 spindle.

Petroleum and Chemistry Industry Configurations

  • Melt, highly viscous sample: RM200 PLUS CP4000H + MK-CP spindle + Rheotex software.

Product Specifications

  • Type of instrument: Cone-plate rotating springless rheometer with 7’’ Touch screen
  • Rotation speeds: Unlimited number of speeds between 0.3 and 1500 rpm
  • Torque range: 0.05 to 30 mNm
  • Temperature: The temperature range of the use is from – 20 °C to + 300 °C according to models
  • Accuracy: +/- 1% of the full scale
  • Repeatability: +/- 0.2%
  • Display: Viscosity – Speed – Torque – Time – Temperature -- Choice of viscosity units: cP/Poises or mPa.s/Pa.s – Shear rate
  • Norms: ASTM : D4287 ; BS 3900 ; DIN 3219 ; 52007-1 ; 53019-1 ; 54453 ; ISO 2884; 3219 ; 10364-12.
  • Language: French/English/Russian/Spanish
  • Compatible measuring system: MS CP
  • Supply voltage: 90-240 VAC 50/60 Hz
  • Analog output: 4 - 20 mA
  • PC connections: RS232 Port and USB
  • Printer connection: USB Host Port - Compatible PCL/5
  • Options: Rheotex Software (PN N311000 + license PN N311204)
  • Dimensions and weight: Head: L180 x W135 x H250 mm; Stand for CP 2000: D610 x W340 x H650 mm; Weight: 22 kg
