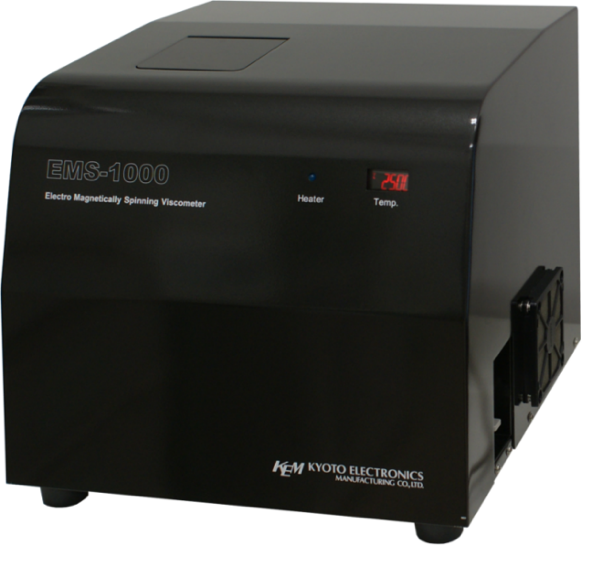

Electromagnetically Spinning Viscometer
A new development in viscosity testing equipment. This electromagnetic viscometer, the EMS-1000, features small sample viscosity determination, contact-free tests and temperature controlled processing.
Tests are performed on a small sample ( 300µL or 700µL) contained in a disposable tube. These EMS-1000 features are achieved by an electromagnetic spinning method. Magnets are positioned around the sample tube to create a rotating magnetic field. This field moves a small aluminum sphere placed in the sample.
Testing with the EMS-1000 requires no clean-up. Both the sample tube and aluminum sphere are disposable, so once a test is complete, all you have to do is throw away the sample tube. This is ideal for products which require testing in a sterile environment, and for preventing cross-contamination between products or samples.
The EMS-1000 provides temperature control between 0 to 200oC. Measurements can also be performed at elevated pressures.
A CMOS camera lets you see what's happening to your product during the test, making it easy to observe coagulation or detect impurities.
The sealed measuring cell equips the EMS-100 to accurately measure volatile, toxic, or air-sensitive samples.
Method of Measurement |
Electro Magnetically Spinning Method (EMS) |
Viscosity Measuring Range |
with 2mm sphere: 0.1-100,000 cP with 4.7mm sphere: 10-1,000,000 cP |
Measurement Accuracy and Repeatability | RSD 3% (according to KEM's standard measuring conditions) |
Minimum Sample Amount |
with 2mm sphere: 300µL with 4.77mm sphere: 700µL |
Temperature Range and Stability |
Range: 0-200oC (the ambient temperature must not exceed 20oC for measurements at temperatures less than 10o Stability: +/- 0.1oC |
Motor Speed Range and Stability |
Range: 500-1,000 rpm Stability: +/- 3% |
Ambient Conditions |
Temperature: 10-30oC Humidity: 85% RH max (no condensation) |
Storage Conditions |
Temperature: -20 - 60oC Humidity: 85% RH max (no condensation) |
Power Supply, main unit | AC 200-220V +/- 10% or AC 100-120V +/- 10% |
Power Consumption, main unit | Approx 150W (MAX 600 W) |
Dimensions | 374(W) x 347(D) x 335(H) mm |
Weight | Approx. 24kg |
