Indirect Moisture Methods » Capacitance Based Moisture Instruments » AgriPro Moisture Meter

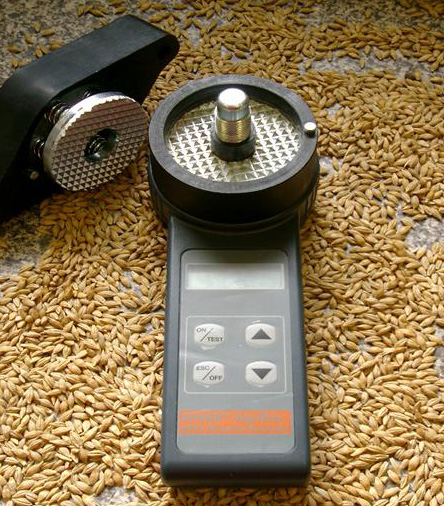

A hand held moisture meter is an instrument that you can take to the product and conduct a test on the spot.
The AgriPro fulfills that need. To operate the AgriPro, simply:
**** In seconds you get a moisture reading ****
This ability to take the unit with you lets you test your product in the field, in the storage area, on the production line, or at any point where the knowledge of moisture levels is important.
Each AgriPro comes with calibrations for 19 different products.
Other helpful features are:
Easy-to-read digital readout -- See the results anywhere.
Averaging facility -- Automatically average readings from repeated samples.
Temperature Compensation -- Do not need to have controlled environment.
Hand Held -- Carry it anywhere.
|
Dimensions: |
325 mm x 164 mm x 120 mm |
|
Weight: |
2.1 kg |
|
Operating environment: |
0°C to + 55°C |
|
Storage temperature: |
-20° to +55° |
|
Construction: |
Polyurethane Reaction Injection Moulding |
|
Display: |
Alphanumeric 2 x 20 characters |
|
Power supply: |
Four C size 1.5 V alkaline batteries |
|
Processor: |
Intel 80C31 microprocessor |
|
Memory: |
EPROM and RAM |
|
Measurement range: |
1-35% moisture, wet basis (depending on applications) |
|
Print out: |
RS232 C |
|
Accuracy: |
Typical standard deviation 0.3 for moisture (dependent on application and moisture level) |
|
Repeatability: |
Standard deviation 0.05 to 0.15 (dependent on application) |
|
Weight Balance: |
Oscillating weight balance which also operates in non-horizontal position. Measures and corrects for weights between 20-240 grams. |
|
Temperature corrections: |
Thermistor sensor connected to microprocessor |
|
Cell volume: |
290 ml volume |
|
Bias facility: |
Moisture content and hectolitre (bushel) weight readings can be biased in increments of 0.1 |
|
Temperature: |
°C or °F |
|
Specific weight: |
Hectolitre or Bushel weight readings |
|
Humidity: |
Up to 95% non-condensing |
|
User interface: |
Menu driven |
