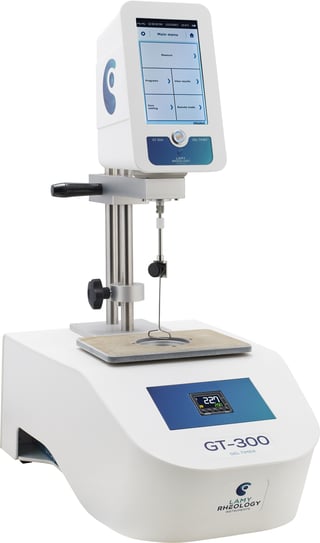

Model GT-300 Plus
The GT-300 Plus Gel Timer offers an easier way to test the curing time of products such as epoxies, polymers, adhesives, paints, and sealants.
The process of curing often makes the spindles and sample holders.difficult or impossible to clean. Withe the GT-300, spindles, sample cups, and even the temperature probe are disposable, which means you never have to worry about clean-up problems.
Temperature control options allow for testing products that need to cure at higher (up to 300oC) or slightly cooler (15oC) temperatures.
Do you only have small sample amounts to work with? No problem. The GT-300 Plus has a spindle option that allows for testing with samples of just 35-50mL. (Regular spindles still only use 50-80mL!)
|Type of instrument||Rotating springless viscometer / gel timer with 7’’ Touch screen|
|Rotation speeds||Unlimited number of speeds between 0.3 and 1500 rpm|
|Torque range||From 0.05 to 30 mNm|
|Temperature||The GEL TIMER GT 300 is also available in temperature control version from 15 °C to 300°C (according to models).|
|Accuracy||+/- 1 % of the full scale|
|Repeatability||+/- 0.2 %|
Viscosity – Speed – Torque – Time – Temperature
Choice of viscosity units: cP/Poises or mPa.s / Pa.s – Shear rate
|Security and confidentiality||
An «operator» function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code.
There is also a protected mode that locks your measurement conditions.
|Supply voltage||90-240 VAC 50/60 Hz|
|Analog output||4 - 20 mA|
|PC connections||RS232 Port and USB|
|Printer connection||USB Host Port - Compatible PCL/5|
|Includes||Rheotex Software (PN N31100 + PN N311300)|
|Spindles and Sample Cups||Disposable aluminium cups (set of 100) PN 700011; Gel timer measuring hook (Vol. 50-80mL) standard (set of 100) PN 700010; Gel timer measuring hook low volume (Vol. 35-50mL) (set of 100) PN 70004|
|Options||Breakable Thermocouple (PN 000645)|
|Dimensions and weight||
Head: L180 x W135 x H250 mm
Stand for GEL TIMER: D610 x W340 x H650 mm
Weight: 15 kg
