Test Sieve Certification

Mesh Certified Test Sieves (MCTS)

Several standards organizations have established procedures for certifying woven wire mesh (also know as woven wire cloth) test sieves.

The diameter and construction of the frame are one element of the specification. These measurements are fixed and easily understood. However, several factors, including the weaving process, affect the precision of the openings over the surface of a section of woven wire mesh. Consequently, standards institutions such as ASTM and ISO give particular emphasis to establishing acceptable limits of opening size in mesh used for test sieves.

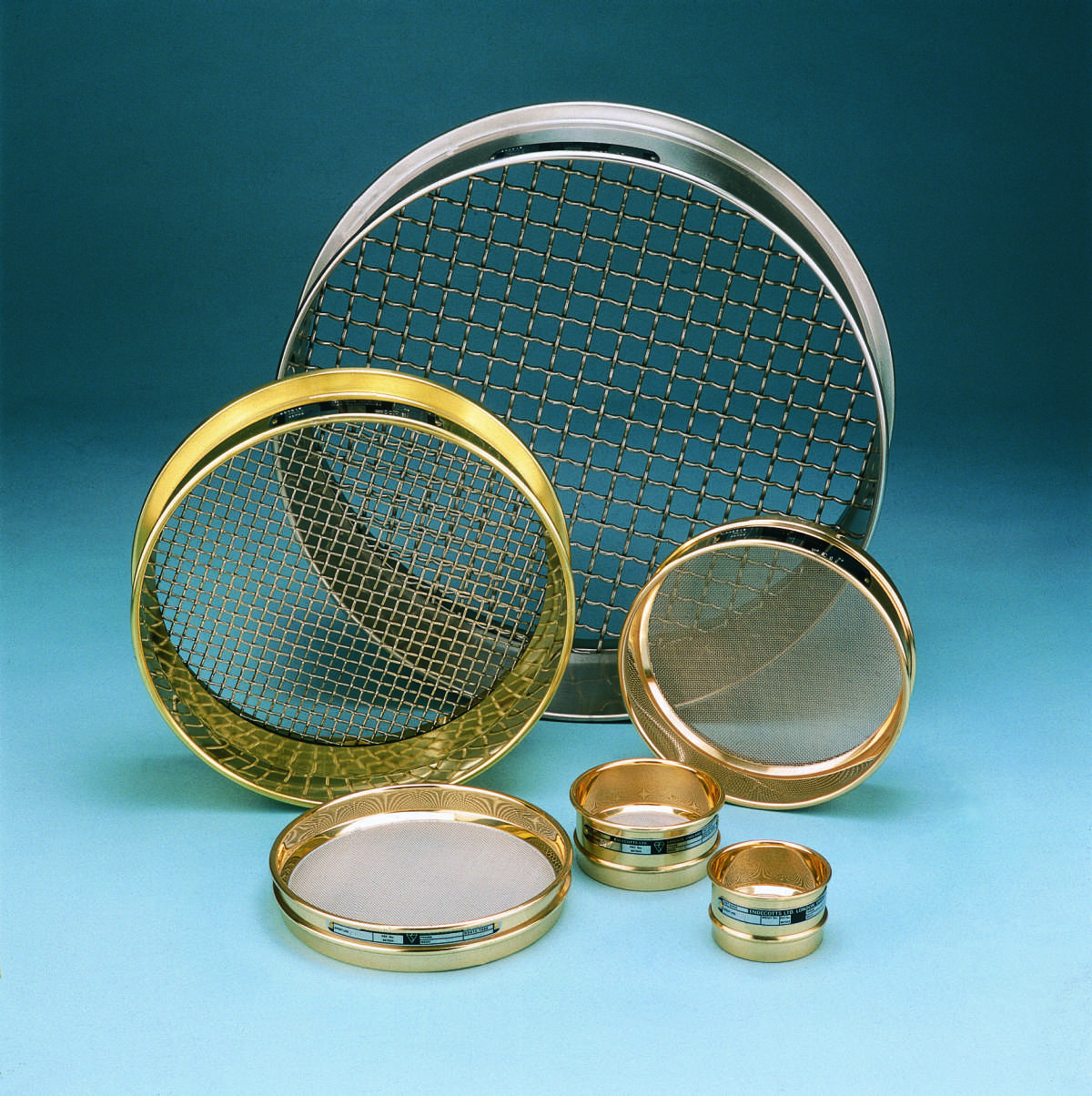

Available in the following options:

  • 3 inch, 8 inch, and 12 inch diameters
  • Brass and stainless steel frames
  • Full and half height frames
  • Coarse and fine mesh sizes

ASTM E11-09

For examples of these detailed specifications and techniques, we refer to the technical requirements delineated in the ASTM E11-09 Standard Specification for Woven Wire Test Sieve Cloth (wire mesh). In this document, the nominal opening sizes and allowable variations are enumerated. In addition, three levels of appraisal and statistical confidence are defined for each nominal size. These levels or categories are defined as:

  • Compliance Test Sieve – in this category, the mesh for the test sieve is measured before being installed in the sieve. A confidence level for that test sieve should be better than 66%
  • Inspection and Calibration Test Sieve – categories require that the mesh be inspected after being mounted in the sieve frame. The confidence levels for these are:
Inspection - Test Sieve : 99%
Calibration - Test Sieve : 99.73%

The number of openings that are measured and acceptable tolerances are specified for each category.

An extra charge for inspection and calibration category certification in normal. The charge usually ranges between $100 and $200.

Other standards organizations such as ISO and BSA use similar schemes.

Assessment of Certification Values

As the mesh sizes get smaller, the proportion of openings measured becomes less. For example, the number of openings measured in a sieve with 1 millimeter openings equals approximately 0.06% of the total. Approximately 0.04% of the openings in a 300 micron sieve are measured. To get the confidence levels of each ASTM category, statistical formulas are applied to the actual measurements.

In addition, the specification prescribes the largest maximum individual opening in a test sieve. On a 1 millimeter sieve, this is 1.14 millimeters, or 12% largerthen the nominal size. The relationship of largest maximum individual opening to nominal size on a 300 micron sieve is 18% larger, and 28% larger on a 75 micron sieve.

These certifications are frequently used as part of quality control management systems such as ISO 9000. However, there is a growing attitude that sieve calibration provides a more realistic standard than certification because the process measures the performance of a test sieve during a sieve test.
