Consistometer

Bostwick Consistometer

NEW Abuse Protection Option

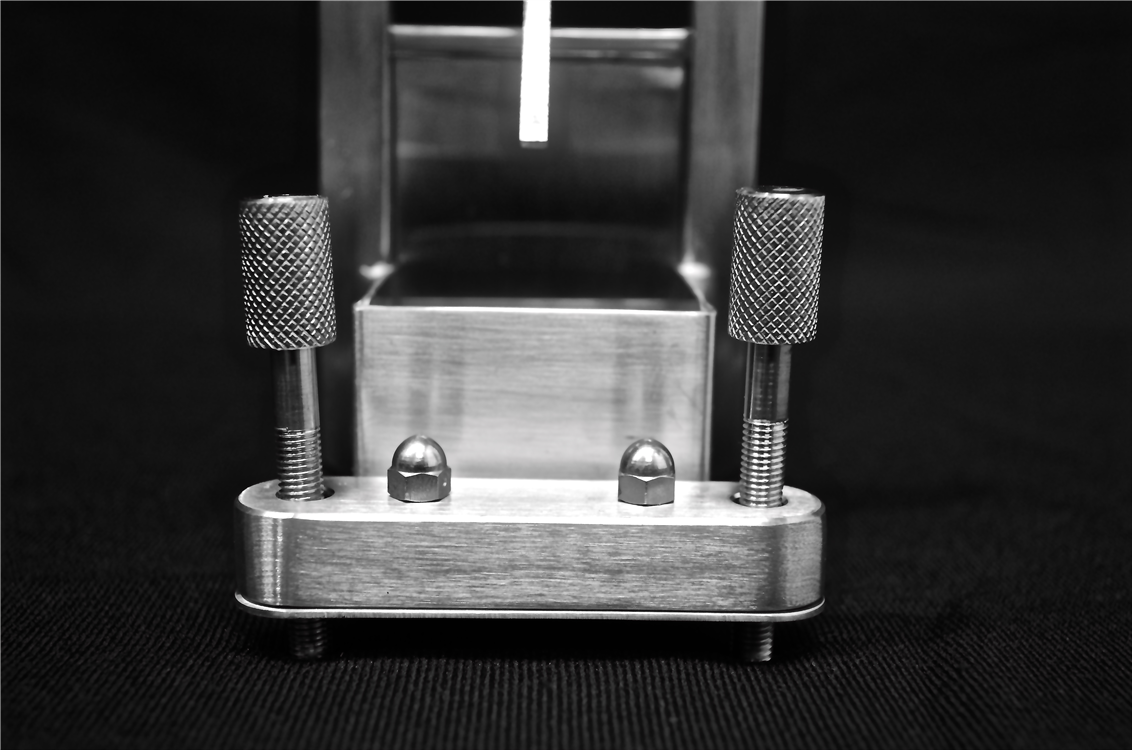

A long time customer helped us develop a new option for the Bostwick Consistometer. The option eliminates damage to leveling screw platform from dropping and other mishandling of the Consistometer by operators.

Set the details of the factory add-on at  Abuse Protection Option.

How to Conduct a Consistency Test

Click the button below to see how to run a test with the Bostwick Consistometer.

Watch the Video



Need Operating Instructions?

Bostwick Consistometer

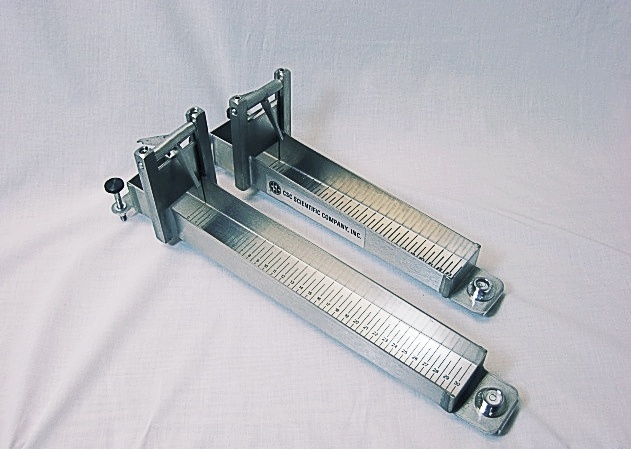

The Bostwick Consistometer is the preferred choice for measuring consistency and flow rate in a variety of products. You can use the "Bostwick" on any viscous material such as sauces, salad dressings, paints, chemicals or cosmetics. The normal way to use the Consistometer is to measure the distance a sample flows in a given time interval.

describe the image

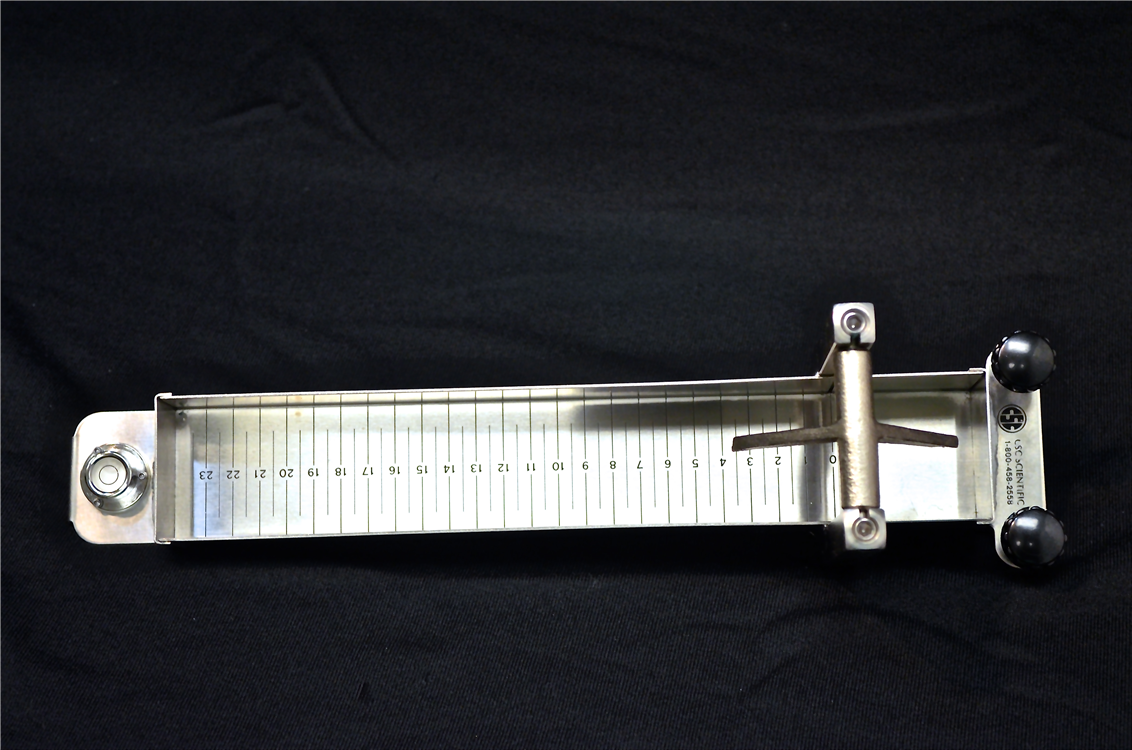

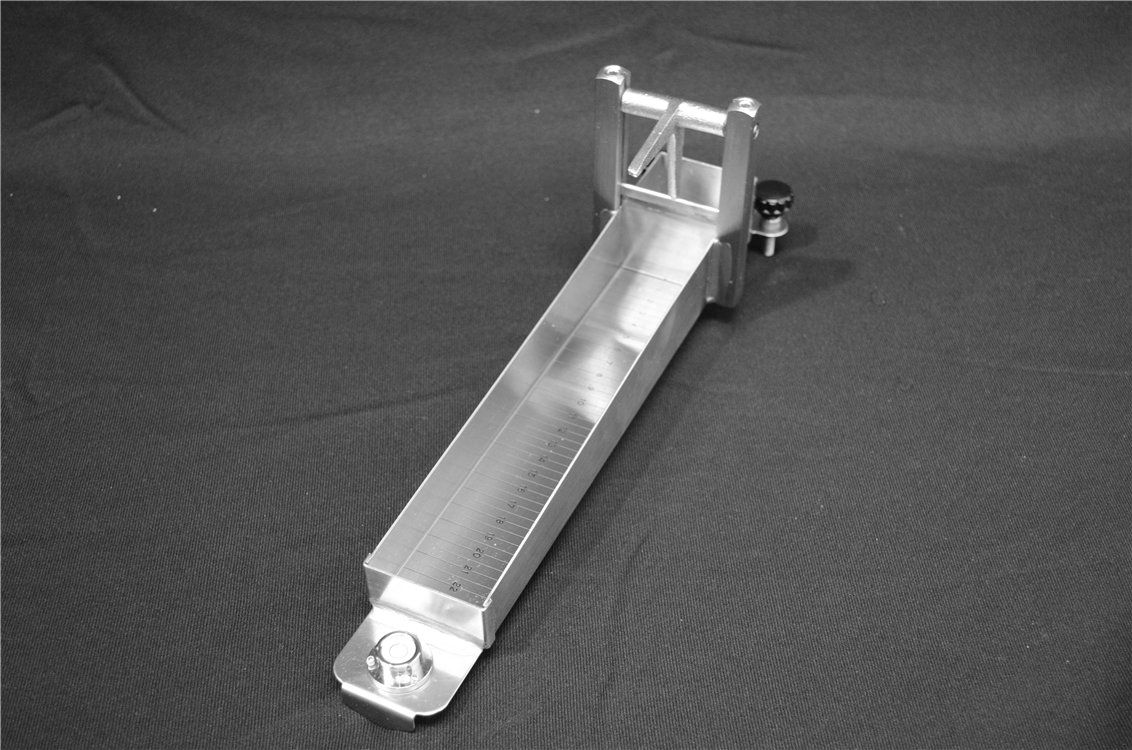

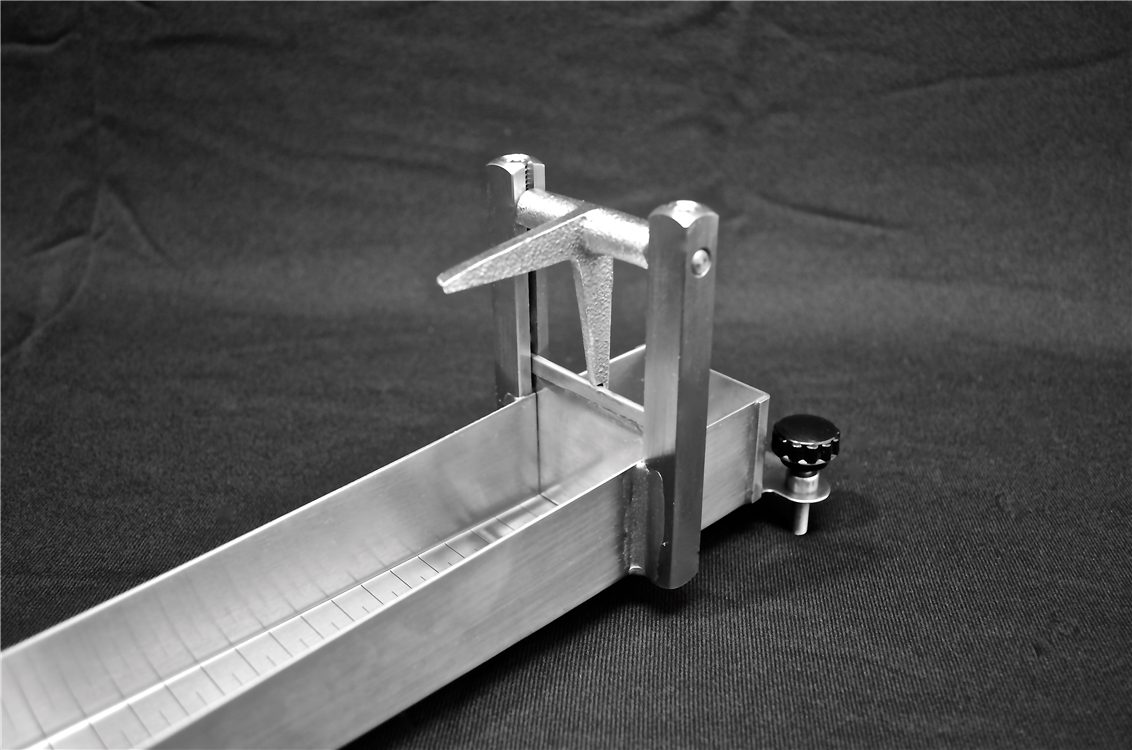

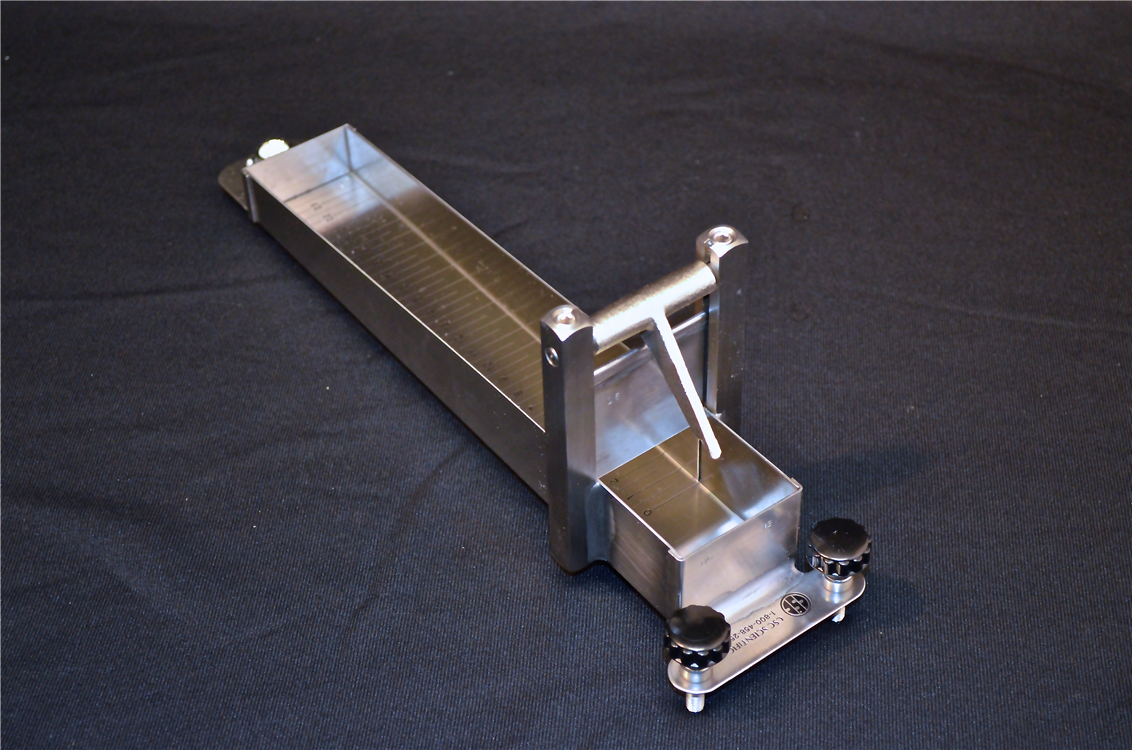

The "Bostwick" is a long trough with 0.5 cm graduations along the bottom. The trough is separated near one end by a spring loaded gate. This forms a chamber where the sample is loaded.

To perform a test, first a sample is loaded, then the gate is opened and a timer is started. At a predetermined time the position of the sample in the trough is recorded.

The question is frequently asked about recommendations for standards on products. Each of our customers sets their own standards and operating procedures based on the individual characteristics of their products.

The "Bostwick" also complies with the procedures established in Mill Spec R-81294D and ASTM F1080-93.

The "Bostwick" Consistometer is built for ease of operation and heavy duty use. The unit is made from stainless steel which resists corrosion. To clean it after a test, simply wash it out with water.

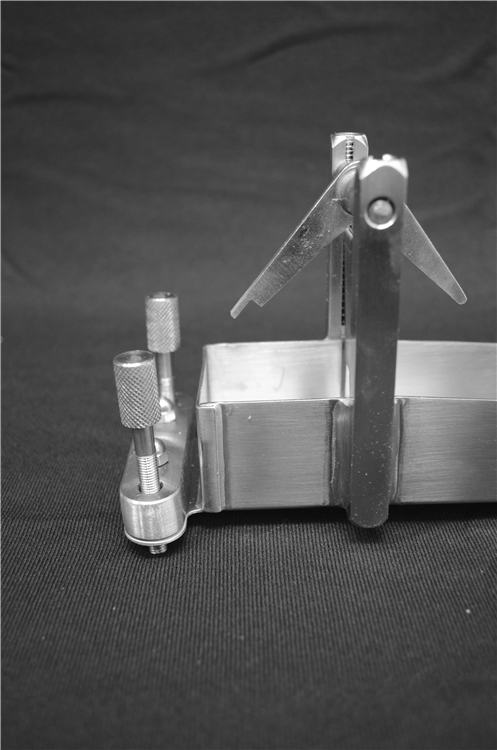

The spring loaded gate makes the start of a test instantaneous and precise.

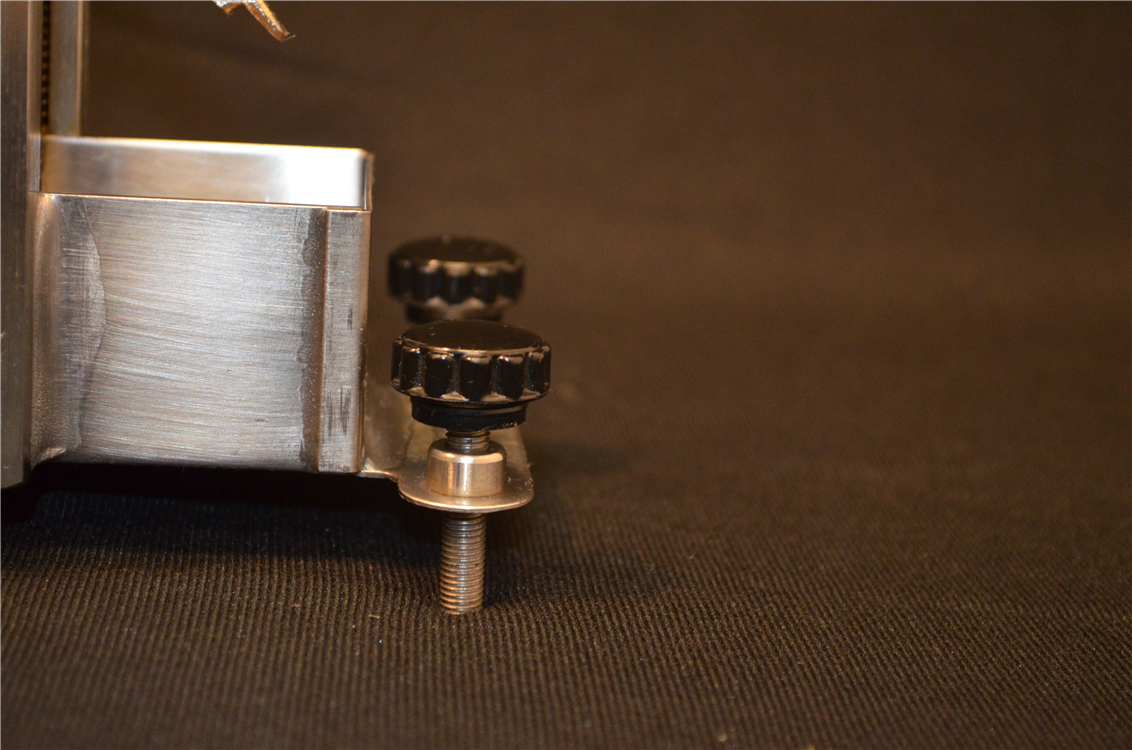

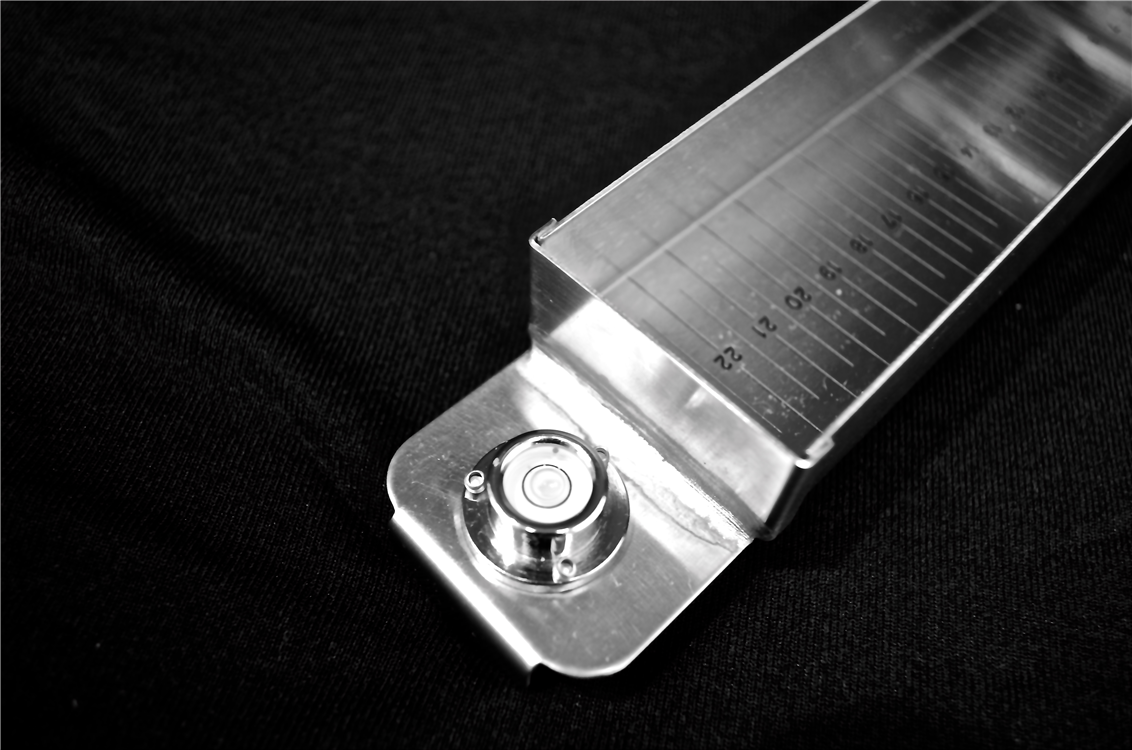

The leveling screws and spirit level insure proper set-up.For detailed specifications visit our store.

Order Information

Additional Specifications, ordering information and pricing information are available at the Order Bostwick.
