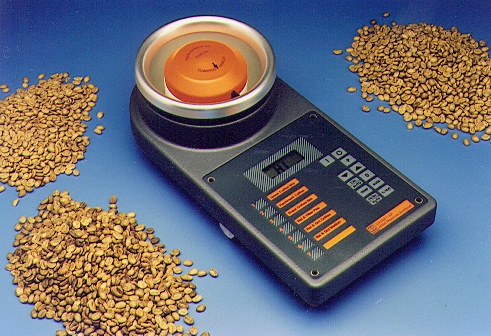

Sinar AP Moisture Analyzer

Dimensions:

325 mm x 164 mm x 120 mm

Weight:

1.8 kg

Operating environment:

0°C to + 55°C

Storage temperature:

-20° to +55°
Humidity up to 95% non condensing

Construction:

Polyurethane Reaction Injection Moulding

Display:

3.5 Character. LCD 15 mm high

Power supply:

Four C size 1.5 V alkaline batteries

Processor:

Intel 80C31 microprocessor

Memory:

EPROM and RAM

Measurement range:

1-35% moisture, wet basis (depending on applications)

Print out:

RS232 C

Accuracy:

Typical standard deviation 0.3 for moisture (dependent on application and moisture level) and 1.0 for hectolitre (bushel) weight

Repeatability:

Standard deviation 0.05 to 0.15 (dependent on application)

Weight Balance:

Oscillating weight balance which also operates in non-horizontal position. Measures and corrects for weights between 20-240 grams.

Temperature corrections:

Thermistor sensor connected to microprocessor
The correction is software programmable
Temperature read out and correction 0-50°C

Full cell:

290 ml volume

Bias facility:

Moisture content and hectolitre (bushel) weight readings can be biased in increments of 0.1

Temperature:

°C or °F

Specific weight:

Hectolitre or Bushel weight readings
