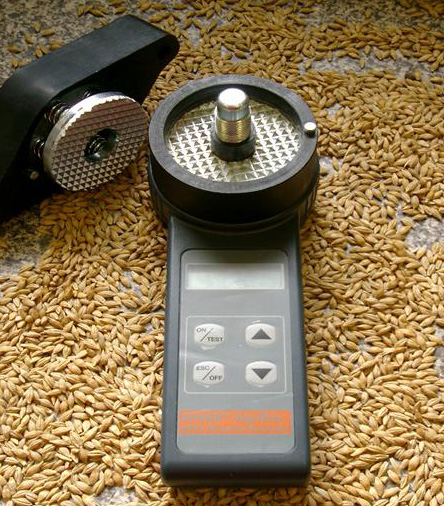

Portable Capacitance Moisture Testing

A hand held moisture meter is an instrument that you can take to the product and conduct a test on the spot.

The AgriPro fulfills that need. To operate the AgriPro, simply:

  1. Unscrew the cover,
  2. Fill the measurement cell,
  3. Screw down the cover, and
  4. Press the test button.

**** In seconds you get a moisture reading ****

This ability to take the unit with you lets you test your product in the field, in the storage area, on the production line, or at any point where the knowledge of moisture levels is important.

Each AgriPro comes with calibrations for 19 different products.

Other helpful features are:

Easy-to-read digital readout -- See the results anywhere.

Averaging facility -- Automatically average readings from repeated samples.

Temperature Compensation -- Do not need to have controlled environment.

Hand Held -- Carry it anywhere.

ProductSpecs

Dimensions:

325 mm x 164 mm x 120 mm

Weight:

2.1 kg

Operating environment:

0°C to + 55°C

Storage temperature:

-20° to +55°
Humidity up to 95% non-condensing

Construction:

Polyurethane Reaction Injection Moulding

Display:

Alphanumeric 2 x 20 characters

Power supply:

Four C size 1.5 V alkaline batteries

Processor:

Intel 80C31 microprocessor

Memory:

EPROM and RAM

Measurement range:

1-35% moisture, wet basis (depending on applications)

Print out:

RS232 C

Accuracy:

Typical standard deviation 0.3 for moisture (dependent on application and moisture level)

Repeatability:

Standard deviation 0.05 to 0.15 (dependent on application)

Weight Balance:

Oscillating weight balance which also operates in non-horizontal position. Measures and corrects for weights between 20-240 grams.

Temperature corrections:

Thermistor sensor connected to microprocessor
The correction is software programmable

Cell volume:

290 ml volume

Bias facility:

Moisture content and hectolitre (bushel) weight readings can be biased in increments of 0.1

Temperature:

°C or °F

Specific weight:

Hectolitre or Bushel weight readings

Humidity:

Up to 95% non-condensing

User interface:

Menu driven
